Nama : Aditya Dwi Zakaria
JOBSHEET

SUPERLAB 3
Hari/Tanggal : Selasa, 26/11/2016
Kelas : XII TKJ2
SKKD :
No Jobsheet : 16
Guru Study : Maman Hariana


SUPERLAB 3


Materi Lab :
1. Static Routing
2. Dynamic Routing Eigrp
3. Virtual Interface
4. Vlan
5. Intervlan Routing
6. Trunking
7. DHCP Vlan
8. Wireless
9. DHCP Server
10. DNS Server

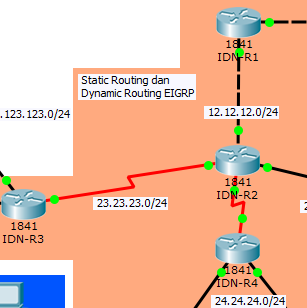

Konfigurasi IP IDN-R1 :

Router>enable
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#interface FastEthernet0/0
Router(config-if)#
Router(config-if)#exit
Router(config)#interface FastEthernet0/1
Router(config-if)#
Router(config-if)#exit
Router(config)#interface Serial0/0/0
Router(config-if)#
Router(config-if)#exit
Router(config)#interface Serial0/1/0
Router(config-if)#ex
Router(config)#router eigrp 10
Router(config-router)#net 12.12.12.0
Router(config-router)#no auto
Router(config-router)#no auto-summary
Router(config-router)#ex
Router(config)#ip route 123.123.123.0 255.255.255.0 12.12.12.2
Router(config)#ip route 113.113.113.0 255.255.255.0 12.12.12.2
Router(config)#ip route 10.10.10.0 255.255.255.0 12.12.12.2
Router(config)#ip route 20.20.20.0 255.255.255.0 12.12.12.2
Router(config)#ip route 30.30.30.0 255.255.255.0 12.12.12.2
Router(config)#ip route 40.40.40.0 255.255.255.0 12.12.12.2

Selanjutnya, pada IDN-R2 konfiguraikan ip berikut dengan netmask/24 :

Router(config)#router eigrp 1
Router(config-router)#net 12.12.12.0
Router(config-router)#net 23.23.23.0
Router(config-router)#net 24.24.24.0
Router(config-router)#net 21.21.21.0
Router(config-router)#no auto
Router(config-router)#no auto-summary
Router(config-router)#ex
Router(config)#ip route 111.111.111.0 255.255.255.0 12.12.12.1
Router(config)#ip route 123.123.123.0 255.255.255.0 23.23.23.3
Router(config)#ip route 113.113.113.0 255.255.255.0 23.23.23.3
Router(config)#ip route 10.10.10.0 255.255.255.0 24.24.24.4
Router(config)#ip route 20.20.20.0 255.255.255.0 24.24.24.4
Router(config)#ip route 30.30.30.0 255.255.255.0 24.24.24.4
Router(config)#ip route 40.40.40.0 255.255.255.0 21.21.21.1

Selanjutnya pada IDN-R3 konfigurasikan ip berikut dengan netmask/24 :

Router(config)#ip dhcp pool client
Router(dhcp-config)#net 113.113.113.0 255.255.255.0
Router(dhcp-config)#default-
Router(dhcp-config)#default-router 113.113.113.3
Router(dhcp-config)#dns-
Router(dhcp-config)#dns-server 111.111.111.2
Router(dhcp-config)#ex
Router(config)#router eigrp 1
Router(config-router)#net 23.23.23.0
Router(config-router)#no auto-summary
Router(config-router)#ex
Router(config)#ip route 111.111.111.0 255.255.255.0 23.23.23.2
Router(config)#ip route 10.10.10.0 255.255.255.0 23.23.23.2
Router(config)#ip route 20.20.20.0 255.255.255.0 23.23.23.2
Router(config)#ip route 30.30.30.0 255.255.255.0 23.23.23.2
Router(config)#ip route 40.40.40.0 255.255.255.0 23.23.23.2

Selanjutnya pada IDN-R4 konfigurasikan ip berikut dengan netmask/24 :

Konfigurasi Virtual Interface pada IDN-R4 :

Router(config)#in fa 0/0
Router(config-if)#no shutdown
Router(config-if)#ex
Router(config)#in fa 0/0.10
Router(config-subif)#encapsulation dot1Q 10
Router(config-subif)#ip address 10.10.10.4 255.255.255.0
Router(config-subif)#in fa 0/0.20
Router(config-subif)#encapsulation dot1Q 20
Router(config-subif)#ip address 20.20.20.4 255.255.255.0
Router(config-subif)#ex
Router(config)#in fa 0/1
Router(config-if)#no shutdown
Router(config-if)#ex
Router(config)#in fa 0/1.30
Router(config-subif)#encapsulation dot1Q 30
Router(config-subif)#ip address 30.30.30.4 255.255.255.0
Router(config-subif)#ex

Konfigurasi Dynamic Routing pada IDN-R4 :

Router(config)#router eigrp 1
Router(config-router)#net 24.24.24.0
Router(config-router)#no auto-summary
Router(config-router)#ex

Konfigurasi Static Routing pada IDN-R4 :

Router(config)#ip route 111.111.111.0 255.255.255.0 24.24.24.2
Router(config)#ip route 123.123.123.0 255.255.255.0 24.24.24.2
Router(config)#ip route 113.113.113.0 255.255.255.0 24.24.24.2
Router(config)#ip route 40.40.40.0 255.255.255.0 24.24.24.2




Selanjutnya pada IDN-MLS1 :

Switch>enable
Switch#conf igure terminal
Switch(config)#vlan 40
Switch(config-vlan)#name vlan40
Switch(config-vlan)#ex
Switch(config)#in vlan 40
Switch(config-if)#ex

Switch(config)#in vlan 40
Switch(config-if)#ip address 40.40.40.1 255.255.255.0
Switch(config-if)#ex

Switch(config)#in fa0/1
Switch(config-if)#no switchport
Switch(config-if)#ip address 21.21.21.1 255.255.255.0
Switch(config-if)#ex

Switch(config)#in ra fa 0/2-3
Switch(config-if-range)#switchport mode access
Switch(config-if-range)#switchport access vlan 40
Switch(config-if-range)#ex

Konfigurasi DHCP VLAN untuk client pada IDN-MLS1 :

Switch(config)#ip dhcp pool vlan40
Switch(dhcp-config)#net 40.40.40.0 255.255.255.0
Switch(dhcp-config)#default-router 40.40.40.1
Switch(dhcp-config)#dns-server 111.111.111.2
Switch(dhcp-config)#ex

Konfigurasi Dynamic Routing pada IDN-MLS1 :

Switch(config)#ip routing
Switch(config)#router eigrp 1
Switch(config-router)#net 21.21.21.0
Switch(config-router)#no auto-summary
Switch(config)#ex

Konfigurasi Statuc Routing pada IDN-MLS1 :

Switch(config)#ip route 111.111.111.0 255.255.255.0 21.21.21.2
Switch(config)#ip route 123.123.123.0 255.255.255.0 21.21.21.2
Switch(config)#ip route 113.113.113.0 255.255.255.0 21.21.21.2
Switch(config)#ip route 10.10.10.0 255.255.255.0 21.21.21.2
Switch(config)#ip route 20.20.20.0 255.255.255.0 21.21.21.2
Switch(config)#ip route 30.30.30.0 255.255.255.0 21.21.21.2




Selanjutnya pada IDN-SW1 mengkonfigurasi VLAN dan TRUNKING :

Switch>enable
Switch#configure terminal
Switch(config)#vlan 10
Switch(config-vlan)#name vlan10
Switch(config-vlan)#ex
Switch(config)#vlan 20
Switch(config-vlan)#name vlan20
Switch(config-vlan)#ex
Switch(config)#int fa0/2
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 10
Switch(config-if)#exit
Switch(config)#int fa0/3
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 20
Switch(config-if)#ex

Konfigurasi Switch Trunking pada IDN-SW1 :

Switch(config)#int fa0/1
Switch(config-if)#switchport mode trunk
Switch(config-if)#ex

Pada IDN-SW2 akan mengkonfigurasi VLAN dan TRUNKING :

Switch>enable
Switch#conf igure terminal
Switch(config)#vlan 30
Switch(config-vlan)#name vlan30
Switch(config-vlan)#ex
Switch(config)#in ra fa 0/2-3
Switch(config-if-range)#switchport access vlan 30
Switch(config-if-range)#ex

Konfigurasi Trunking pada IDN-SW2 :

Switch(config)#in fa 0/1
Switch(config-if)#switchport mode trunk
Switch(config-if)#ex


Lalu Test PING antar client yang berbeda network dan VLAN ID.


Lakukan trancert untuk mengetahui jalur yang digunakan pada saat kita mengirim suatu paket data.
